Zhejiang Xinna Medical Device Technology Co., Ltd.

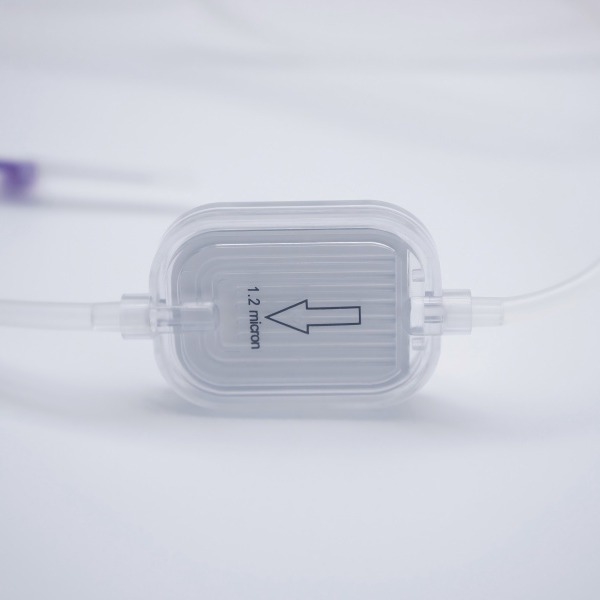

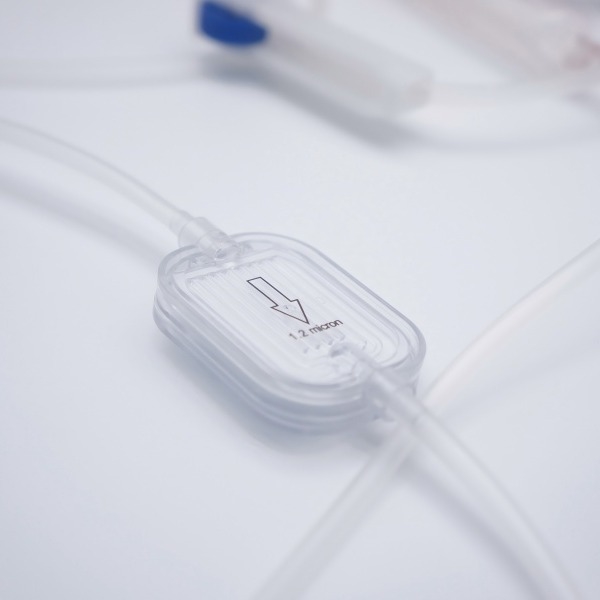

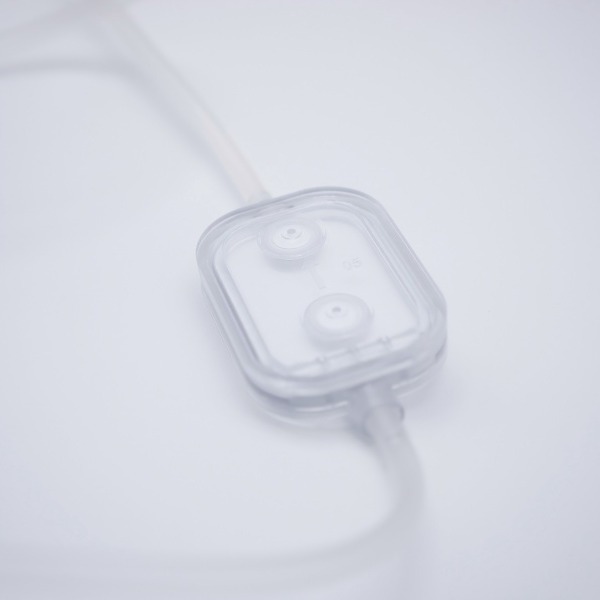

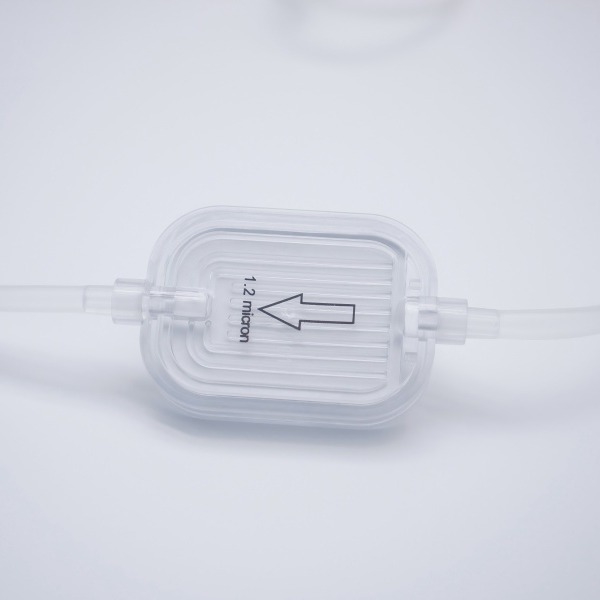

1.2 micron IV Filter for infusion therapy

Detalhes do produto:
Lugar de origem: China
Marca: OEM avaliable
Certificação: YY 0286.1 GB 8368-2018 ISO9001
Número do modelo: F33
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 100,000pcs
Preço: $0.15-$0.22 per piece
Detalhes da embalagem: 750 pcs por embalagem com rótulo, 4 pacotes por cartão ou personalizável
Tempo de entrega: 30 dias
Termos de pagamento: C/C, T/T
  • Informação detalhada
  • Descrição de produto

Informação detalhada

Nome do produto: Filtro IV descartável de 1,2 mícron Alojamento de filtro: ABS
Tamanho dos poros: 1.2um Material médio: PES, PTFE para respiros
Parar a altura do líquido: ≥ 1,5 m Modo do conjunto: Fusão térmica ou soldagem por ultra-som
Esterilização: Não estéreis/EOS Tipo: F, descartável
Vantagem: Paragem automática do líquido Cores: Natural, à prova de luz disponível
Compatibilidade: Compatível com tubos IV padrão Garantia: 3 Anos
Aplicação: Conjunto de perfusão País de Origem: China
Destacar:

1.2 micron

,

iv filter 1.2μm

,

infusion set

Descrição de produto

IV Filter With Hydrophilic PES-pp 1.2μm and Hydrophobic PTFE 0.45μm for infusion set



F33 IV Filter is an air eliminating filter for the removal of inadvertent particulate debris and other components like incomplete mixing of drugs and entrained air in catheter which may be found in solutions intended for intravenous use. The filtration efficiency of the membrane and the overall design of the filter can impact the safety of drug delivery for human beings.



Features :

  • Easy to connect to IV tubing sets with standard luer inlet and outlet slip
  • Precision filtration of fine particles
  • High retention efficiency
  • Range of pore size options
  • Automatic air-stop
  • Lightproof-colored housings for light sensitive drugs is available
  • Printing available for ease of product identification

Specifications:





Dimensions: 57*29.5*0.94mm(inlet/outlet connector included)
Weight: 5.7-5.8g
Filtration area: 6.0CM2
Venting area: 0.54CM2
Venting air flow rate: 25ml/min@5kpa
Max burst pressure: 3.6bar(52.5psi)
Operating Temp: 5-40℃
Storage Temp: 0-50℃
Filtration rate: PES-PP 5.0μm ≥95%,
PES-PP 3.0/2.0/1.2μm ≥90%
Min water flow rate: PES-PP 1.2μm ≥500ml/10min@10kpa
PES-PP 2μm ≥600ml/10min@10kpa
PES-PP 3μm ≥800ml/10min@10kpa
PES-PP 5μm ≥1000ml/10min@10kpa
Sterilization: Ethlene Oxide(Max 60℃)



Applications:

  • Filter is designed for use in filtration of intravenous for removal of particles larger than 1.2μm
  • Infusion set



Package&Label:



3000pcs/box, 4 inner PE bags with 750 pcs inside each. each bag is sealed separately and cushion between each other.
Each bag is labeled with information as following, different lots in one box are closed separately and labeled seperately to prevent.
